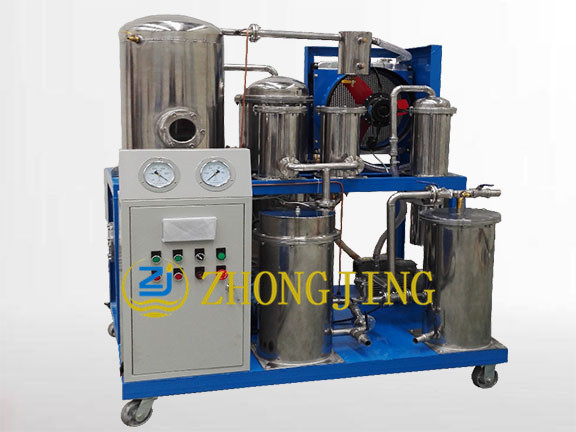

Stainless steel lubricating oil purifier

　　Application:

　　Stainless steel vacuum tourism economy is mainly used for filtration and purification of vegetable oil such as vegetable oil, sunflower oil, peanut oil, olive oil, tung oil, palm oil, soybean oil, etc. The equipment can also be used in machinery, metallurgy, mining, petroleum, chemical and other fields to purify lubricating oil such as hydraulic oil, mechanical oil, cooling oil, refrigeration oil, gear oil, gasoline engine oil, diesel engine oil, heat treatment oil, etc.

　　Product features:

　　1. This machine is advanced in process design, with matching with the process of hydraulic oil tank and oil station, online processing can also be offline processing, high degree of automation, compact volume, flexible and convenient movement.

　　2. Oil water separation system; three-dimensional spiral atomization flash rapid evaporation technology can quickly separate water and gas from oil.

　　3. Filtration system: advanced magnetic filter; it is used for oil absorption filtration to filter solid particles and fine iron substances in oil medium, and effectively control the pollution degree of iron impurities in working medium. High quality filtering elements and connecting sealing materials are adopted, which are resistant to high temperature and have good mechanical strength. It can meet the requirements of high heating temperature for filtering high viscosity oil and expand the range of types of purified oil.

　　4. Heating system: adopt safe and reliable circulating carbon fiber heating technology to ensure uniform heating and stable oil temperature while reducing energy consumption.

　　5. Condensing device: adopting advanced strong air cooling technology and medium condensing device, it can quickly cool the water vapor separated from the oil and prolong the service life of the equipment.

　　6. Control system; optimized design of control interlock protection device, overpressure alarm shutdown protection, phase sequence protection, etc. ensure the long-term reliable operation of the whole machine. Automatic pressure alarm and shutdown system, automatic overload protection system, automatic constant temperature system, automatic oil spray protection and other advanced technologies ensure the full automatic and safe operation of the equipment.

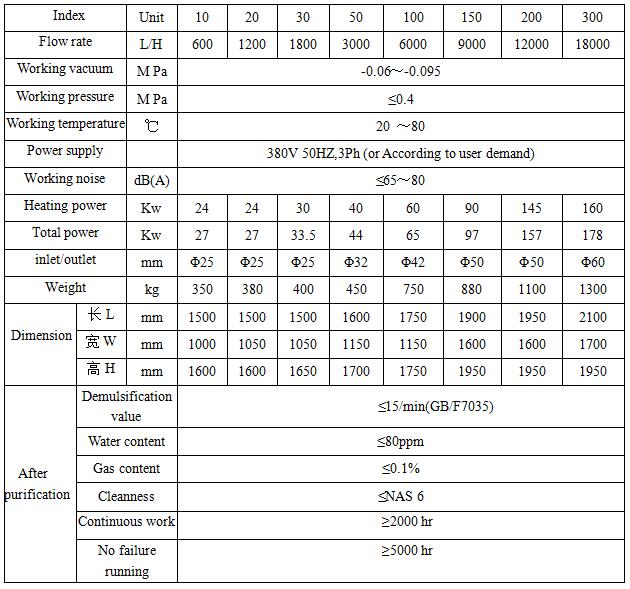

　　Technical parameters:

　　Equipment quality requirements, technical standards: strictly in accordance with the national quality standards, technical standards, inspection standards, after passing the factory, the goods provided are brand new and unused. The whole machine is guaranteed for 3 years. During the warranty period, three guarantees will be implemented for major equipment problems. Any abnormal problems will be handled by the supplier free of charge. If it occurs outside the warranty period, the supplier will provide lifelong free technical services and only charge the cost of accessories.

　　Material selection of the whole equipment: the main body of the whole machine is high carbon steel, and the consumables are stainless steel sheet mesh filter materials (which can be cleaned and reused for many times). The main body can choose stainless steel material for oil pipeline according to the user's requirements. Domestic or imported brands can be selected for oil pump and electrical related main components, or explosion-proof is required. Imported filter element or designated brand can be used for filter element.

　　Chongqing Zhongjing Filter Equipment Manufacturing Co., Ltd. packing: conventional fumigation packaging for wooden box export, and the equipment meets the requirements of long-distance transportation at home and abroad.

　　Equipment transportation mode: automobile, aircraft, ship logistics transportation, the company will replace and repair the goods free of charge until customer satisfaction.

　　Chongqing Zhongjing filtration equipment manufacturing Co., Ltd

　　Manager Zhang 0086-18580036904 (wechat same number) 0086-02386194345

　　Supply cycle: the standard type is available in stock.
