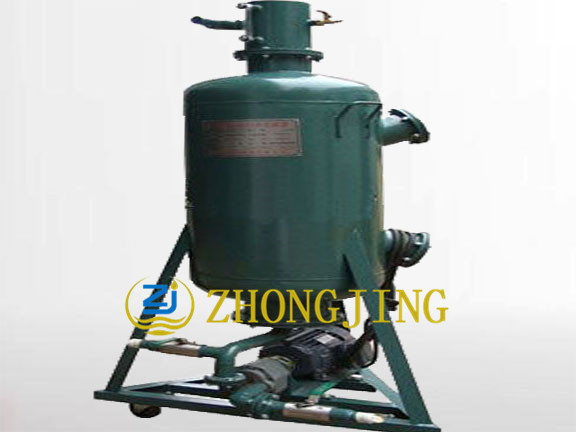

ZYB transformer oil decolorization regeneration tank

Product ID:China

Product Info1:ZYB-20/ZYB-30/ZYB-50/ZYB-100/ZYB-150

Product Info2:ZYB transformer oil decolorization regeneration tank

Shelf time:2020-11-20

Product description:The equipment is suitable for regenerative transformer oil purifier ZYB30L/MIN, regenerative transformer oil vacuum oil p

  Product Usage:

  ZYB transformer oil decolorization regeneration tank uses a special purifier to regenerate and purify unqualified transformer oil, mutual inductance oil, switch oil and other insulating oils. It can also be used as an adsorption device for some low-viscosity lubricants. BZ can effectively remove acidic components, free carbon, oxides, pigments, impurities, etc. in the oil. After treatment, the basic composition and oxidation resistance of the oil are not damaged, and the dielectric properties of the insulating oil are restored. The regenerated transformer oil is clear and transparent. The cost is 90% less than the traditional way of replacing new oil.

  Treatment index:

  Dielectric strength: KV ≥ 45

  flash point (closed point): ℃: ≥135

  Water-soluble acid: PH ≥5.4

  Dielectric loss value: tgδ (90℃)% ≤0.005

  Acid value: mgKOH/g ≤0.03

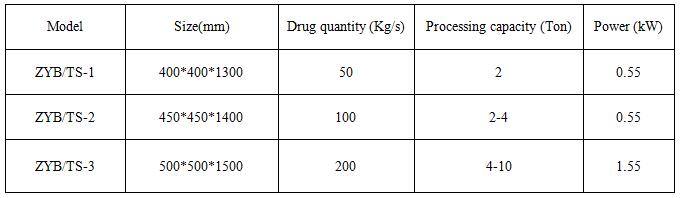

  Technical Parameters:

  Equipment quality requirements, technical standards: strictly in accordance with the national quality standards, technical standards, inspection standards, after passing the factory, the goods provided are brand new and unused. The whole machine is guaranteed for 3 years. During the warranty period, three guarantees will be implemented for major equipment problems. Any abnormal problems will be handled by the supplier free of charge. If it occurs outside the warranty period, the supplier will provide lifelong free technical services and only charge the cost of accessories.

  Material selection of the whole equipment: the main body of the whole machine is high carbon steel, and the consumables are stainless steel sheet mesh filter materials (which can be cleaned and reused for many times). The main body can choose stainless steel material for oil pipeline according to the user's requirements. Domestic or imported brands can be selected for oil pump and electrical related main components, or explosion-proof is required. Imported filter element or designated brand can be used for filter element.

  Chongqing Zhongjing Filter Equipment Manufacturing Co., Ltd. packing: conventional fumigation packaging for wooden box export, and the equipment meets the requirements of long-distance transportation at home and abroad.

  Equipment transportation mode: automobile, aircraft, ship logistics transportation, the company will replace and repair the goods free of charge until customer satisfaction.

  Chongqing Zhongjing filtration equipment manufacturing Co., Ltd

  Manager Zhang 0086-18580036904 (wechat same number) 0086-02386194345

  Supply cycle: the standard type is available in stock.
