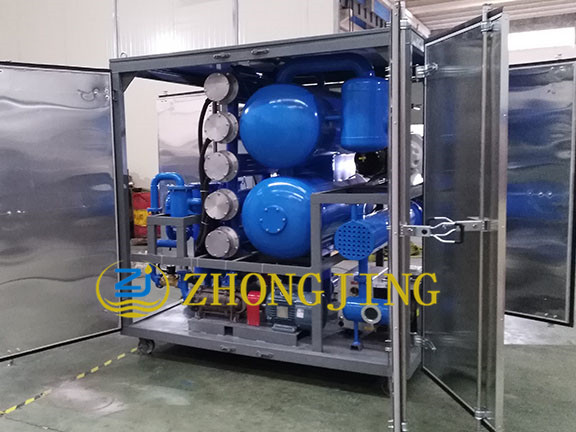

Ultra high voltage transformer oil purifier

Product ID:China

Product Info1:ZhongJing

Product Info2:Ultra high voltage transformer oil purifier

Shelf time:2020-11-20

Product description:Product Usage: UHV transformer oil purifiers are widely used in power plants, substations, power companies, petrochemical

  Product Usage:

  UHV transformer oil purifiers are widely used in power plants, substations, power companies, petrochemicals, metallurgy, and large and medium-sized enterprises to install and repair large-scale transformer oil equipment for oil purification and vacuum hot oil circulation drying. It is especially suitable for the purification treatment of insulating oil of high-voltage and ultra-high voltage transformers above 500KV-1000KV. This machine has strong vacuum degassing ability, oil-water separation ability, particle purification ability, acid removal, removal of free carbon and impurities, etc. The treated transformer oil has a high ultimate withstand voltage value. At the same time, it can perform on-site maintenance of transformers and deep purification treatment of high-grade new oil, imported oil, transformer oil, ultra-high voltage transformer oil and other oil products. It is also used for vacuum oiling and drying of transformers.


  ⊙Double-stage vacuum pumping speed and advanced dehydration and degassing system, adopting large-area three-dimensional flash evaporation technology, can quickly and efficiently remove harmful components such as moisture, impurities, hydrocarbons, etc. in the oil, and improve the flash point and Compressive strength.

  ⊙It can meet the requirements of vacuum pumping and vacuum oiling of the transformer body at the installation or maintenance site.

  ⊙Precise filtration system, high-quality filter element, multi-stage filtration, step-by-step encryption, which can effectively remove mechanical impurities in the oil, and is equipped with automatic detection function of filter element pollution.

  ⊙Automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system and sophisticated configuration ensure high-performance operation of the equipment.

  ⊙The whole machine is equipped with interlocking safety protection, interlocking oil discharge system, vacuum system and heating system.

  ⊙It is equipped with filter element replacement instructions and a shutdown device for filter element saturation.

  ⊙Equipped with leakage and overload shutdown device to protect the motor.

  ⊙It is equipped with phase sequence and phase loss protection functions, and safety control for sudden shutdown.

  ⊙It has an external connection for vacuuming the transformer.

  ⊙Equipped with oil in and out interchange function.

  Product optional configuration:

  ⊙According to the needs of users, it can be equipped with PLC intelligent control, touch screen operation, and dynamic display.

  ⊙Optional online moisture detector, online particle detector, optional flowmeter with accumulation function.

  ⊙The frequency converter is optional, and the flow can be selected according to the needs.

  ⊙The whole machine structure: mobile, fixed, trailer type (half axle or double axle), fully enclosed, eaves type, canvas shed, open type.

  Product parameters:

  Equipment quality requirements, technical standards: strictly in accordance with the national quality standards, technical standards, inspection standards, after passing the factory, the goods provided are brand new and unused. The whole machine is guaranteed for 3 years. During the warranty period, three guarantees will be implemented for major equipment problems. Any abnormal problems will be handled by the supplier free of charge. If it occurs outside the warranty period, the supplier will provide lifelong free technical services and only charge the cost of accessories.

  Material selection of the whole equipment: the main body of the whole machine is high carbon steel, and the consumables are stainless steel sheet mesh filter materials (which can be cleaned and reused for many times). The main body can choose stainless steel material for oil pipeline according to the user's requirements. Domestic or imported brands can be selected for oil pump and electrical related main components, or explosion-proof is required. Imported filter element or designated brand can be used for filter element.

  Chongqing Zhongjing Filter Equipment Manufacturing Co., Ltd. packing: conventional fumigation packaging for wooden box export, and the equipment meets the requirements of long-distance transportation at home and abroad.

  Equipment transportation mode: automobile, aircraft, ship logistics transportation, the company will replace and repair the goods free of charge until customer satisfaction.

  Chongqing Zhongjing filtration equipment manufacturing Co., Ltd

  Manager Zhang 0086-18580036904 (wechat same number) 0086-02386194345

  Supply cycle: the standard type is available in stock.
