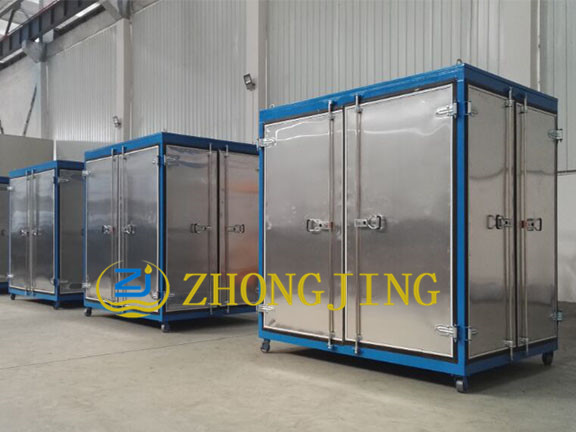

Enclosed transformer oil purifier

Product ID:China

Product Info1:ZhongJing

Product Info2:Enclosed transformer oil purifier

Shelf time:2020-11-20

Product description:Product Usage: The enclosed transformer oil purifier adopts the vacuum negative pressure principle the latest duplex thre

  Product Usage:

  The enclosed transformer oil purifier adopts the vacuum negative pressure principle, the latest duplex three-dimensional flash evaporation technology, thin film evaporation technology, and multi-stage precision filtration, so as to reliably remove harmful substances such as moisture, impurities, and gases from the unqualified oil. Quickly restore the oil performance to meet the oil standard. The equipment is used in power plants, power stations, power companies, substation industries, metallurgy, petrochemical, machinery, transportation, railways and other industries. Especially for the on-site inspection and repair of transformers in large-scale substations above 110KV and the deep purification of high-grade new oil, imported oil, transformer oil, ultra-high voltage transformer oil and other oil products. It can also be used for vacuum oiling and drying of transformers. Can live on-site work.


  ⊙The whole machine is enclosed by aluminum profile or iron profile, which can protect the equipment from dust and sun at all times and extend its service life.

  ⊙The filter system adopts high-quality imported filter element, multi-stage filtration, and step-by-step encryption, which can effectively remove mechanical impurities in the oil, and is equipped with automatic detection function of filter element pollution.

  ⊙Automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system and sophisticated configuration ensure high-performance operation of the equipment.

  ⊙The whole machine is equipped with interlocking safety protection, and the oil discharge system, vacuum system and heating system are interlocked to avoid adverse effects caused by misoperation.

  ⊙It is equipped with filter element replacement instructions and a shutdown device for filter element saturation.

  ⊙Equipped with leakage and overload shutdown device to protect the motor.

  ⊙It is equipped with phase sequence and phase loss protection functions, and safety control for sudden shutdown.

  ⊙It is equipped with an external vacuum system for transformer.

  Technical Data Sheet:

  Equipment quality requirements, technical standards: strictly in accordance with the national quality standards, technical standards, inspection standards, after passing the factory, the goods provided are brand new and unused. The whole machine is guaranteed for 3 years. During the warranty period, three guarantees will be implemented for major equipment problems. Any abnormal problems will be handled by the supplier free of charge. If it occurs outside the warranty period, the supplier will provide lifelong free technical services and only charge the cost of accessories.

  Material selection of the whole equipment: the main body of the whole machine is high carbon steel, and the consumables are stainless steel sheet mesh filter materials (which can be cleaned and reused for many times). The main body can choose stainless steel material for oil pipeline according to the user's requirements. Domestic or imported brands can be selected for oil pump and electrical related main components, or explosion-proof is required. Imported filter element or designated brand can be used for filter element.

  Chongqing Zhongjing Filter Equipment Manufacturing Co., Ltd. packing: conventional fumigation packaging for wooden box export, and the equipment meets the requirements of long-distance transportation at home and abroad.

  Equipment transportation mode: automobile, aircraft, ship logistics transportation, the company will replace and repair the goods free of charge until customer satisfaction.

  Chongqing Zhongjing filtration equipment manufacturing Co., Ltd

  Manager Zhang 0086-18580036904 (wechat same number) 0086-02386194345

  Supply cycle: the standard type is available in stock.
