Working principle of automatic two-stage high vacuum insulating oil purifier 3000L/MIN

　　The working principle of the automatic two-stage high-vacuum insulating oil purifier 3000L/MIN is suitable for the power industry, construction repairs, cable industry, wire and fiber transformer insulation oil filtration and purification. ZYD model, ZY picture, ZJA parameter, oil product After the treatment equipment is purified, the inspection report can be detected online. It is suitable for ZYD insulating oil double-stage oil filter 30L/MIN, ZJA insulating oil high-efficiency double-stage oil filter 50L/MIN, double-stage insulating oil filter 100L/MIN, insulation Reference for the use of vacuum oil purifier purification equipment such as oil two-stage vacuum oil filter 150L/MIN, and two-stage insulating oil oil filter 200L/MIN. The working principle of transformer oil filtering is easy to understand, and the operation of the equipment is easy to learn.

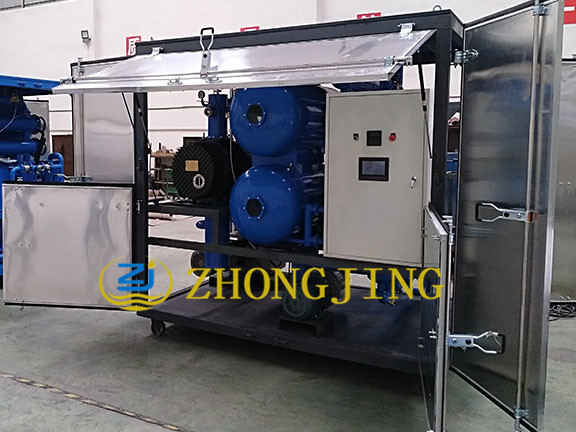

　　Automatic two-stage high vacuum type insulating oil purifier 3000L/MIN working principle picture:

　　The start-up process of 3000L/MIN automatic two-stage high vacuum insulating oil purifier:

　　A1. Wiring preparation: connect the power supply, adjust the rotation direction of the vacuum pump and the oil pump.

　　A2. Preparation before vacuum operation: all the internal valves of the machine are opened to form a passage, and the peripheral valves are closed to ensure the operation of the vacuum.

　　A3. Vacuuming: Start the vacuum pump and when the pumping reaches -0.06, open the oil inlet and outlet valves at the same time to observe the oil inlet and outlet conditions.

　　A4. Start the heater: When the oil in and out reaches the equilibrium point (check through the sight glass), turn on the heater to set the temperature (20-80 degrees) and observe the temperature change.

　　Remarks: If the oil is cold and the viscosity is relatively high, we can first close the main valve of the water diversion tank and the fine filter tank, open the bypass valve, and reduce the oil by not passing through the water diversion and fine filter element. Resistance (pressure) formed by product penetration. When the oil temperature rises to 50 degrees, the main valve of the water distribution tank and the fine filter tank can be opened to form a passage, observe the change of the pressure value and adjust the pressure source.

　　A5. Circulating filtration: When the heating temperature reaches the set temperature, the heater will automatically stop. After 2 hours of continuous circulation filtration, observe the changes in the water content of the oil (whether there are crystals in the water atomization) and the changes in color (sample observation) , Achieving satisfactory results OK.

　　Automatic two-stage high vacuum insulating oil purifier 3000L/MIN shutdown process:

　　1. Stop the heater, keep the machine running for a few minutes, wait for the heater to cool down, and prohibit dry burning without oil.

　　2. Stop the vacuum pump and open the exhaust valve at the same time, so that there is no vacuum in the machine body and prepare for the exhaustion of oil.

　　3. Continue to run the oil pump, and stop the oil pump when the oil inside the machine is exhausted.

　　4. Turn off the power and drain the residual oil inside each tank. There is a valve interface under the tank.

　　Automatic two-stage high vacuum insulating oil purifier 3000L/MIN main features:

　　The unique and efficient dehydration and degassing system introduces advanced German technology, uses vacuum spray diffusion, large-area planar flash evaporation technology, and efficiently and quickly removes pollutants.

　　1. The uniquely designed heating system allows the oil to be heated evenly in a balanced manner, and is equipped with a heater interlocking protection device.

　　2. Advanced liquid level control system and perfect protection functions (phase sequence, overvoltage, etc.) realize continuous online or offline work, easy operation and easy work.

　　3, quickly and efficiently remove water, gas, free carbon and other impurities from the oil to improve the quality of the oil.

　　4. The primary filter device uses a large-flow washable filter element, which has high filtration efficiency and low use cost.

　　5. High-precision filter device adopts "layered gradual density" technology, which has large filtering capacity and long life.

　　6. ​​High degree of automation, humanized design of the whole machine, which can work online.

　　Equipment export packaging: The conventional fumigation packaging is wooden box, which is suitable for domestic and foreign long-distance transportation.

　　Equipment transportation methods: shipping, air transportation, automobile transportation, etc., the company will replace and repair the goods for free until the customer is satisfied with the accident during the transportation and loading.
